Model |
WJ-50Robot Palletizing System |
|
Parameter Category |
Specification Details |
|
Load Capacity |
50–500 kg (customizable for heavy-duty applications up to 1000 kg) |
|
Positioning Accuracy |
±0.5 mm (high-precision servo control for stable stacking) |
|
Applicable Product Types |
Bags (woven, plastic, paper), cartons, boxes, barrels |
|
Applicable Pallet Size |
800×1000 mm, 1000×1200 mm (customizable for non-standard pallets) |
|
Stacking Height |
Max 2500 mm (adjustable based on warehouse and forklift requirements) |
|
Robot Axes |
4-axis/6-axis (4-axis for standard palletizing; 6-axis for complex stacking paths) |
|
Control System |
PLC + Touch Screen (user-friendly interface, supports parameter storage for 100+ stacking recipes) |
|
Power Supply |
380V/50Hz 3-phase (or customized voltage for overseas markets) |
|
Energy Consumption |
≤5 kW/h (energy-saving motor, low standby power consumption) |
|
Integration Compatibility |
Seamless connection with conveyor belts, packaging machines, weighing scales |
|
Safety Features |
Safety light curtain, emergency stop button, overload protection, fault alarm system |
|
Fully automated Robot Palletizing System, stacking height 2500 mm
| مقدار تولیدی: | 1 |
| قیمت: | Negotiations |
| بسته بندی استاندارد: | بسته بندی استاندارد بین المللی برای حمل و نقل |
| دوره تحویل: | 30 روز |
| روش پرداخت: | L/C، T/T، وسترن یونیون |
| ظرفیت تامین: | 300 مجموعه در سال |
automated robot palletizing system,robot palletizing system 2500 mm,fully automated pallet stacking system
,robot palletizing system 2500 mm
,fully automated pallet stacking system

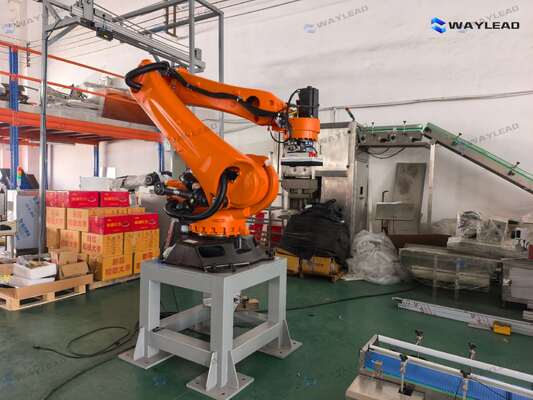

Fully automated Robot Palletizing System
The automated Robot Palletizing System boasts seamless integration capabilities, pairing effortlessly with automated pallet storage systems, pallet conveyor lines, robots across diverse global brands, palletizing fixtures, safety fences, and central control cabinets. This compatibility empowers businesses to deploy either single-line or multi-line fully automated palletizing workflows with zero operational bottlenecks.
As a customized automated Robot Palletizing System project, we provide end-to-end tailored solutions backed by a dedicated team of seasoned technical engineers. All you need to do is share your product specifications, production capacity targets, and factory space dimensions—our experts will design and deliver a turnkey automated production line solution perfectly aligned with your operational needs.
What’s more, this automated Robot Palletizing System supports flexible robot brand selection, covering Chinese, Euopean, and Japanese manufacturers. With load capacities ranging from 60 to 500 kg, it excels at versatile palletizing tasks: single-box, multi-box, full-layer palletizing, and even woven bag palletizing, catering to the diverse demands of industrial production lines.
Complete Packaging Machine Range
Our comprehensive packaging solutions include VFFS machines, flow wrapping machines, heat shrink packaging, pouch packing machines, and complete automated packaging lines with weight inspection, metal detection, carton packing, sealing, coding, and palletizing systems.
Shanghai Waylead Intelligent Technology Co.,Ltd. is specialized in turn-key solutions for packaging processing projects and fruit/vegetable processing lines. The company focuses on packaging equipment, robot applications, fruit and vegetable processing equipment, etc., and is committed to the fruit and vegetable processing industry, baking industry, snack food industry, freeze-drying industry, and powder industry. , sauce industry, hardware chemical industry and other one-stop professional services. The company has 15 years of industry experience and hundreds of domestic and foreign engineering cases, providing customers with high-quality equipment and services.
