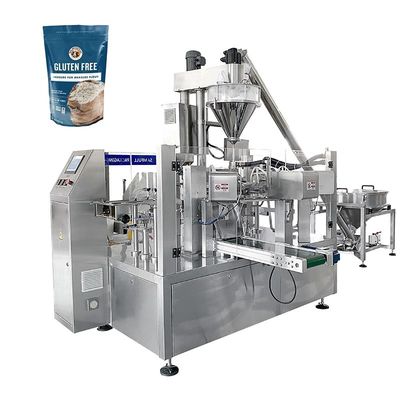

Automatic Zipper Pouch Packing Machine for Resealable Bags – Snacks, Coffee, Pet Food
| مقدار تولیدی: | 1 |
| قیمت: | Negotiations |
| بسته بندی استاندارد: | بسته بندی استاندارد بین المللی برای حمل و نقل |
| دوره تحویل: | 30 روز |
| روش پرداخت: | L/C، T/T، وسترن یونیون |
| ظرفیت تامین: | 300 مجموعه در سال |
Product Description :
The Automatic Zipper Pouch Packing Machine is a high-performance packaging solution designed specifically for pre-made resealable zipper bags. This machine is widely used for packaging snacks, coffee beans, ground coffee, pet food, nuts, dried fruits, and pharmaceutical products. It combines automatic bag feeding, zipper opening detection, filling, and sealing into one continuous operation, significantly improving packaging efficiency while reducing labor costs.
Why Choose This Machine?
For manufacturers looking to produce premium retail-ready zipper bags, this machine delivers consistent sealing quality and high output. The integrated zipper detection system eliminates the risk of sealing over unopened zippers, which is a common problem with lower-end machines. With a production speed of up to 40 to 60 bags per minute depending on bag size and product type, it is ideal for small to medium-sized factories as well as large-scale production lines.
Technical Specifications:
Bag width range is 100 to 300 millimeters, customizable upon request. Bag length range is 150 to 400 millimeters. Filling volume ranges from 5 to 5000 grams depending on the filler type selected. The sealing type is heat sealing with servo-controlled pressure. Power supply is 380 volts at 50 hertz, three-phase, and can be customized for other regions. Air consumption requires 0.6 to 0.8 megapascals.
Applications:
In the food industry, this machine is suitable for coffee, tea, nuts, snacks, rice, sugar, and flour. In the pet food industry, it handles dog food, cat food, and birdseed. For pharmaceutical applications, it packages powders, granules, and tablets. It also works for industrial products such as desiccants, hardware parts, and small components.
After-Sales Support:
We provide free installation guidance, operator training, and a 12-month warranty on all mechanical and electrical parts. Spare parts are available for fast shipping. Our technical team offers remote video support and on-site service if required.
Conclusion:
Investing in the Automatic Zipper Pouch Packing Machine means upgrading your production line with reliability, hygiene, and high output. Contact us today for a customized quote based on your bag size, product type, and desired speed.
| Model | WG-210 | WG-250 | WG-300 |
|---|---|---|---|
| Bag Size | Length: 120-380mm Width: 90-210mm |
Length: ≤400mm Width: 130-260mm |
Length: ≤400mm Width: 160-300mm |
| Packing Speed | ≤70 bags/min | ≤70 bags/min | ≤65 bags/min |
| Work Stations | 8 | 8 | 8 |
| Packaging Formats | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches |
| Power Supply | 380V | 380V | 380V |
| Total Power | 8Kw | 8Kw | 8Kw |
| Air Consumption | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min |
| Film Material | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films |
| Machine Weight | 500kg | 580kg | 850kg |
| Machine Dimensions | 1700*1140*1470 mm | 1850*1250*1520 mm | 2100*1500*1520 mm |
- Designed in accordance with GMP standards and CE certified
- Full servo control system for reliable, fast, and precise operation
- Empty bag tracking and monitoring device prevents sealing without bag opening, saving packaging materials
- Eight-station structure with centralized control via programmable PLC and six flat touch screens for simple operation
